Description
Overview

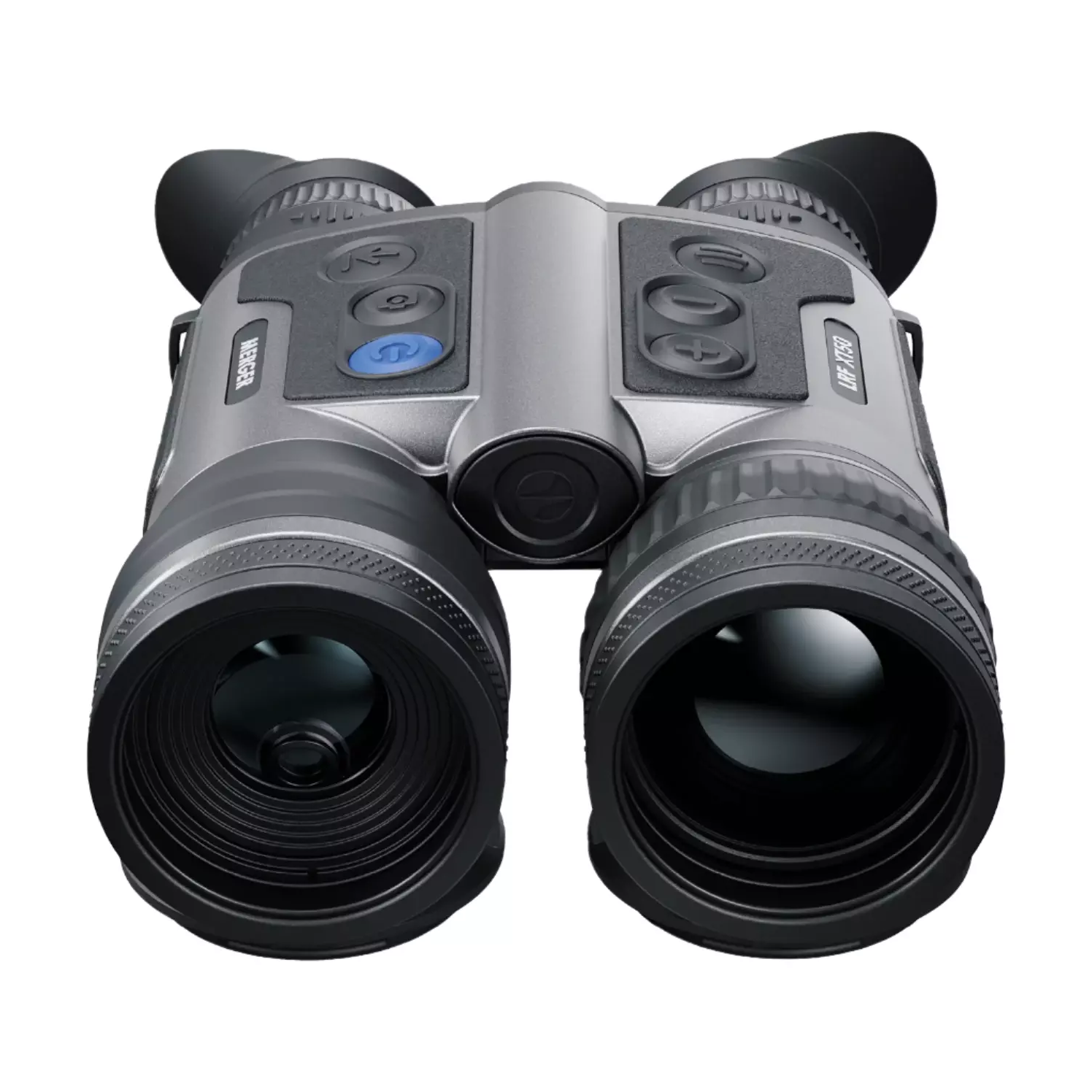

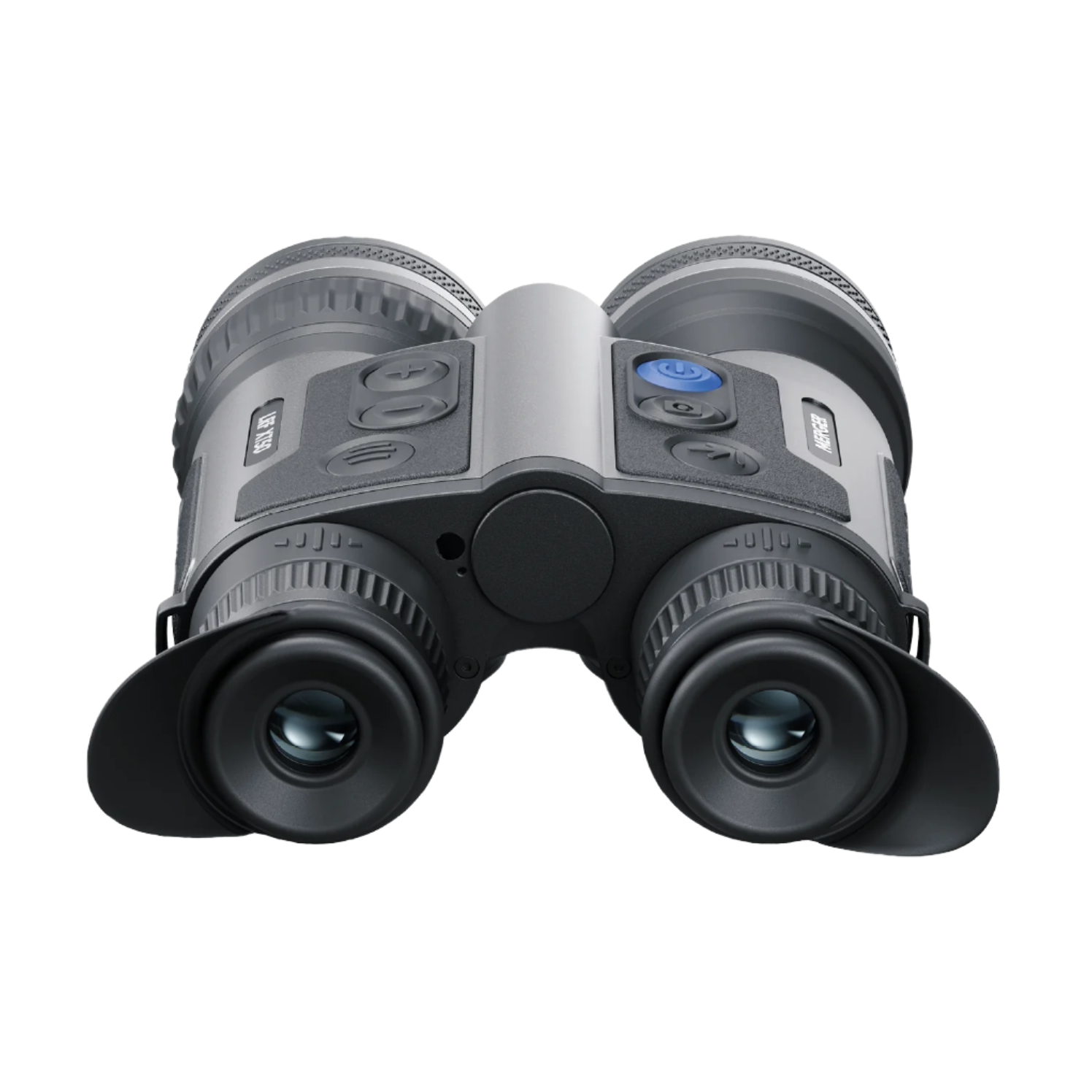

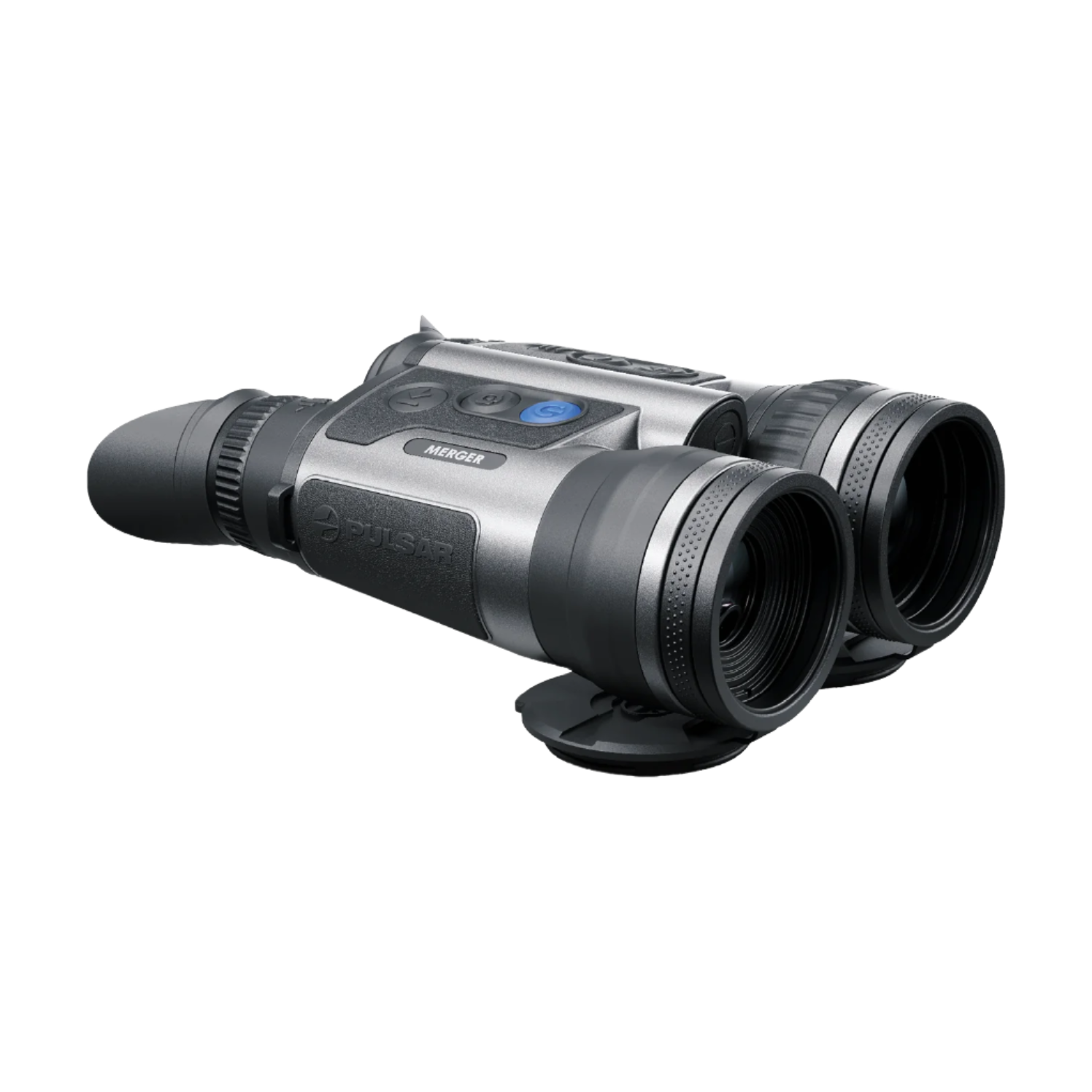

The Pulsar Merger LRF Thermal Binoculars series is engineered for professional ecological surveys and wildlife monitoring. These binoculars combine stereoscopic thermal imaging with a built-in laser rangefinder, offering exceptional depth perception, long-distance detection, and real-time image sharing—making them an ideal choice for field ecologists, ornithologists, and conservation professionals.
Unlike monoculars, the binocular design allows for two-eyed viewing, improving situational awareness and reducing eye strain during extended use. High-performance thermal sensors detect infrared radiation, enabling observation in complete darkness, dense vegetation, and through fog, without the need for artificial light.
Each model in the Merger LRF range includes video/photo capture, 64 GB of internal storage, dual-band Wi-Fi connectivity, and a rugged magnesium alloy housing with IPX7 waterproofing. Stream Vision 2 compatibility allows for wireless data transfer, geotagging, and device control in the field.
Key Features
- Thermal sensors up to 1280 × 1024 resolution with 12 µm pixel pitch
- Built-in laser rangefinder with ±1 m accuracy, measuring up to 1500 m
- Stereoscopic design improves depth perception and observation comfort
- HD AMOLED displays with up to 1280 × 960 resolution
- Digital zoom up to 8× (varies by model)
- Wide field of view supports landscape scanning and multi-target tracking
- Video and photo capture with 64 GB internal memory
- Stream Vision 2 app support for image sharing, live view, and settings control
- Dual-band Wi-Fi (2.4/5 GHz) with WPA encryption
- Magnesium alloy housing with IPX7 waterproof rating
- Dual battery system (internal 4000 mAh + APS3 removable battery)
- Operating temperature: –25°C to +50°C
Specifications

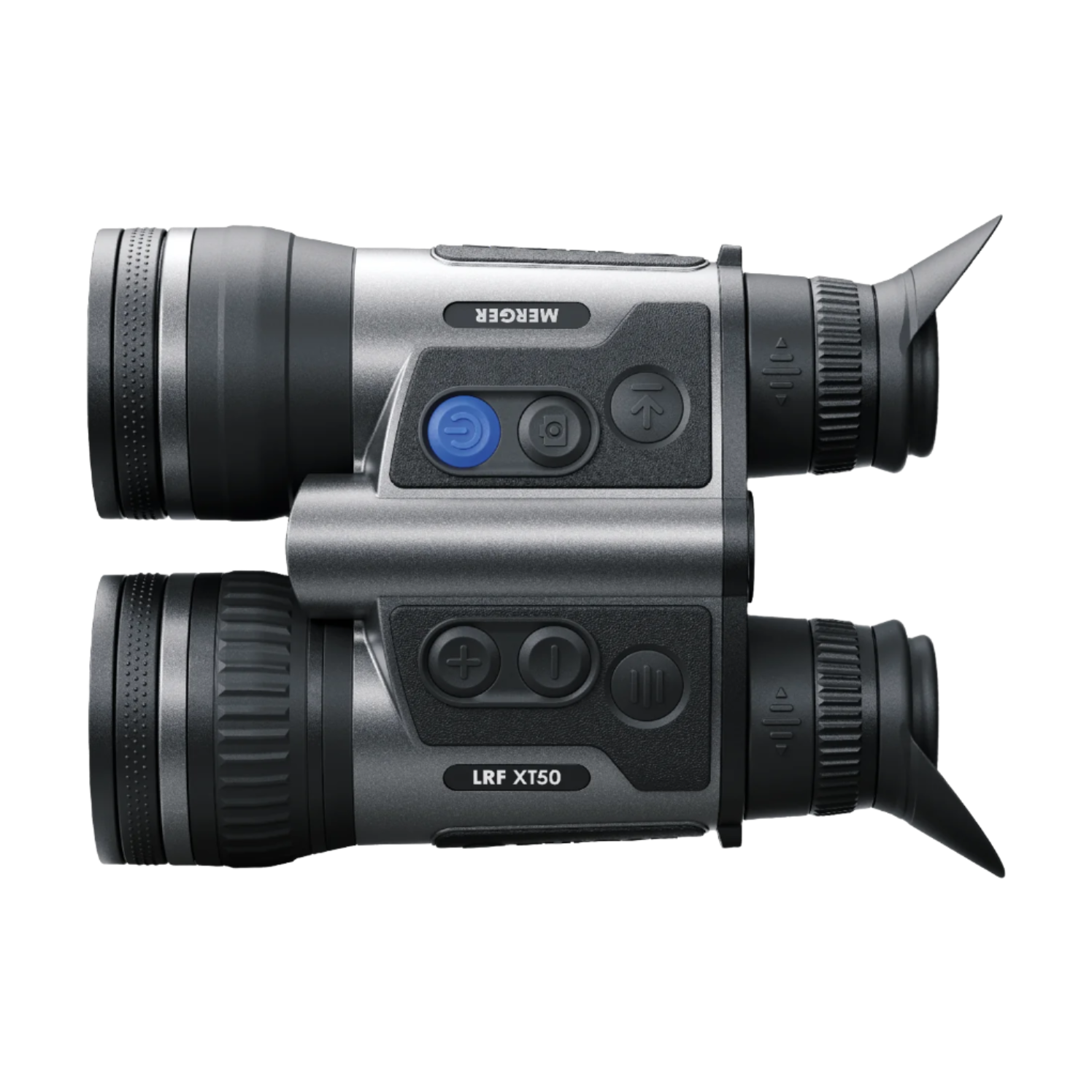

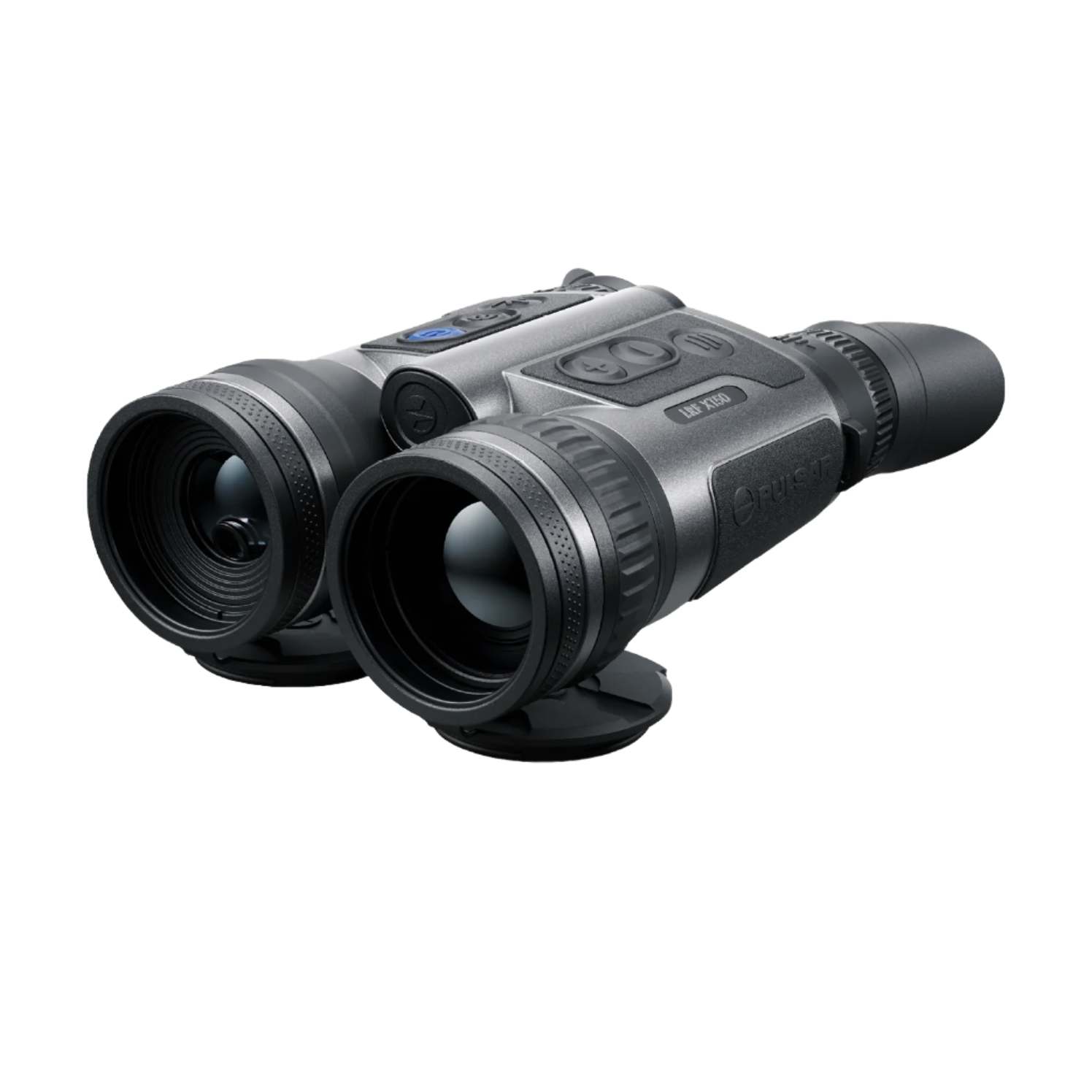

Merger LRF XT50
| Sensor | 1280 × 1024 |
|---|---|
| Pixel Pitch | 12 µm |
| Lens | F50 / 1.0 |
| Magnification | 2 – 16× |
| Field of View (°) | 17.5 × 14 |
| Detection Range | 2300 m |
| Display | 1280 × 960 |
| Battery Life | 6 h |
| Memory | 64 GB |
| Weight | 0.95 kg |
| Dimensions (mm) | 197 × 140 × 72 |
| Key Features | Ultra-HD resolution, image stabilisation |

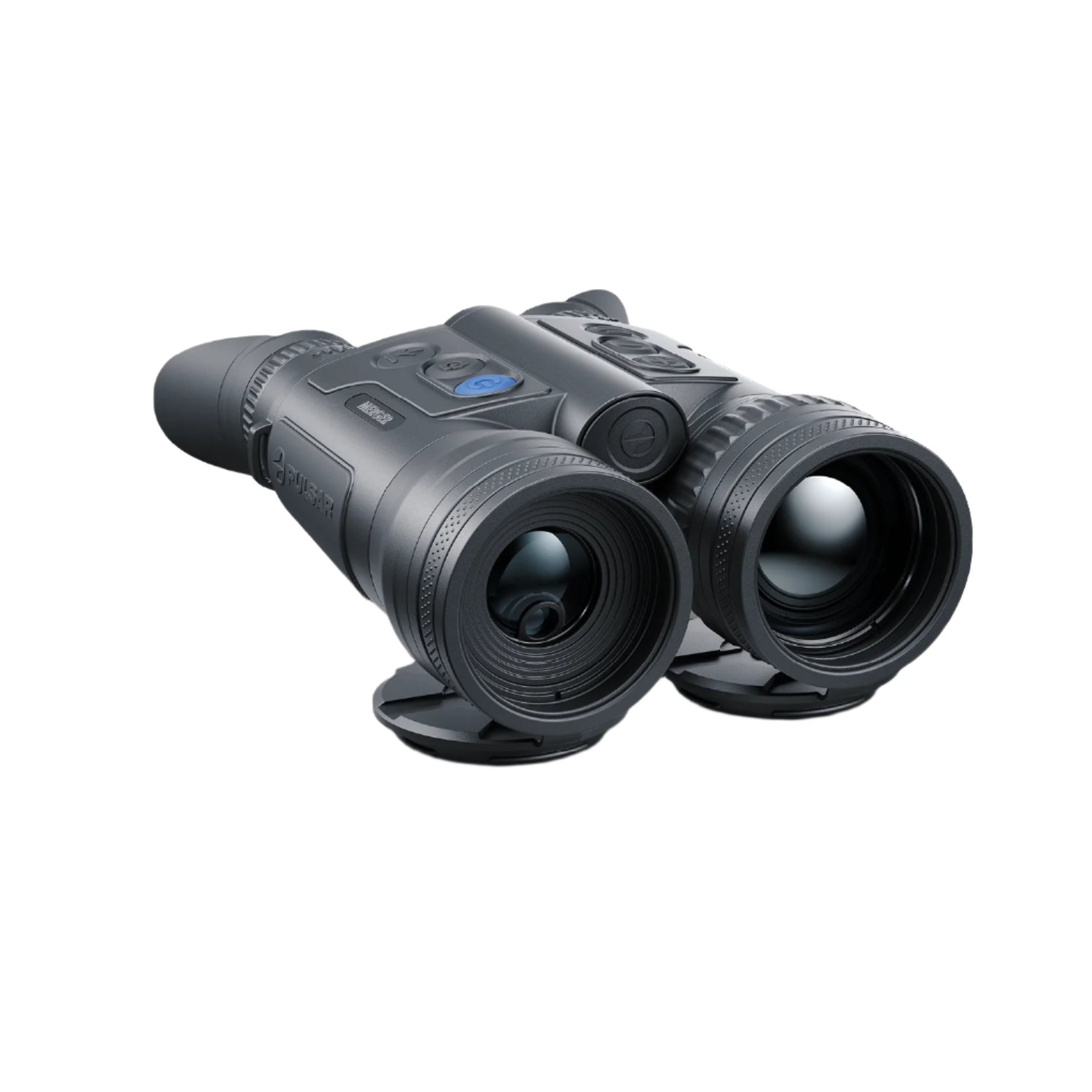

Merger LRF XL50
| Sensor | 1024 × 768 |
|---|---|
| Pixel Pitch | 12 µm |
| Lens | F50 / 1.0 |
| Magnification | 2.5 – 20× |
| Field of View (°) | 14 × 10.5 |
| Detection Range | 2300 m |
| Display | 1024 × 768 |
| Battery Life | 7 h |
| Memory | 64 GB |
| Weight | 0.95 kg |
| Dimensions (mm) | 197 × 140 × 72 |
| Key Features | Consistent sharp imaging across zoom range |

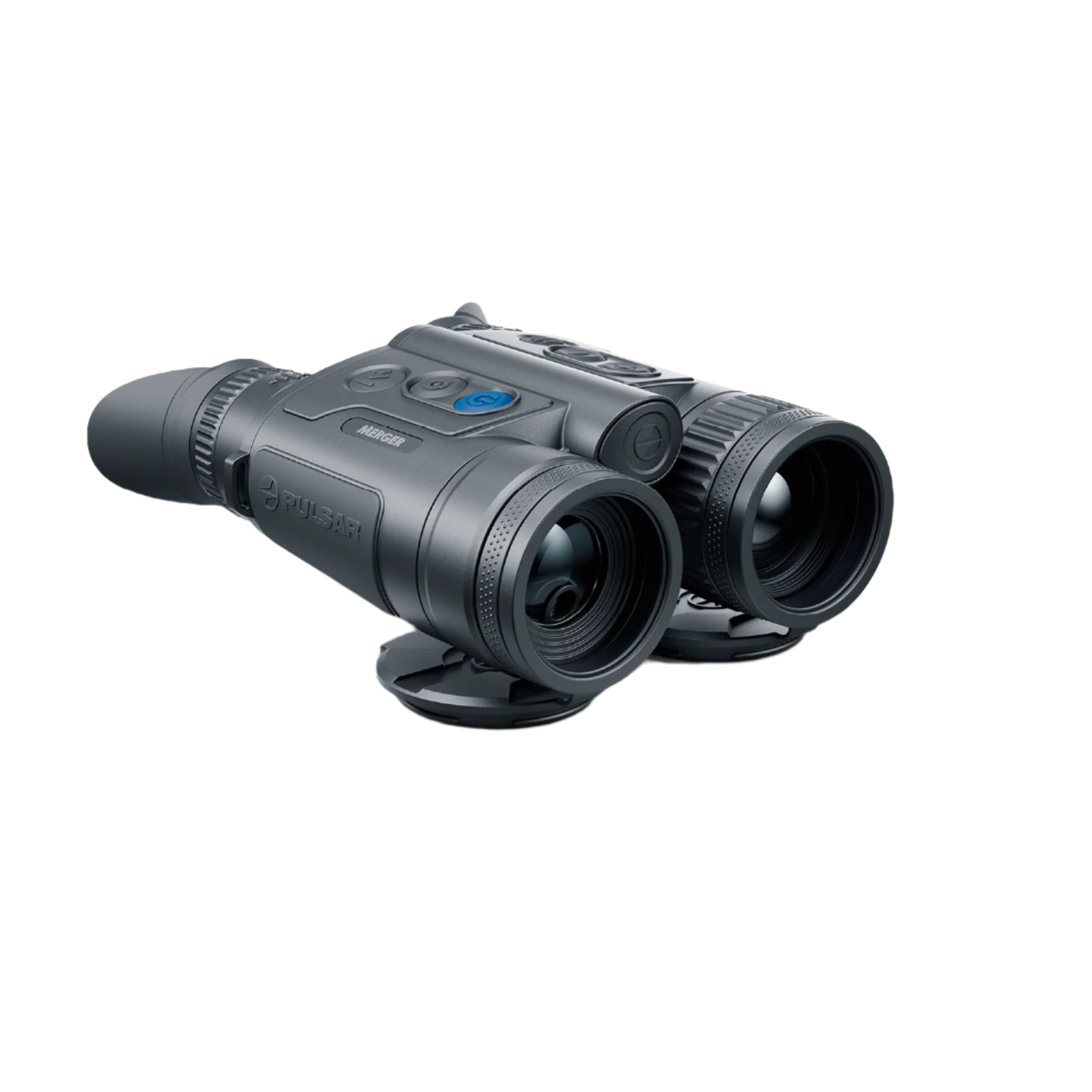

Merger LRF XP35
| Sensor | 640 × 480 |
|---|---|
| Pixel Pitch | 17 µm |
| Lens | F35 / 1.0 |
| Magnification | 2 – 16× |
| Field of View (°) | 17.8 |
| Detection Range | 1350 m |
| Display | 1024 × 768 |
| Battery Life | 8.5 h |
| Memory | 16 GB |
| Weight | 0.83 kg |
| Dimensions (mm) | 165 × 133 × 68 |
| Key Features | Compact, wide FOV for broad habitat scanning |

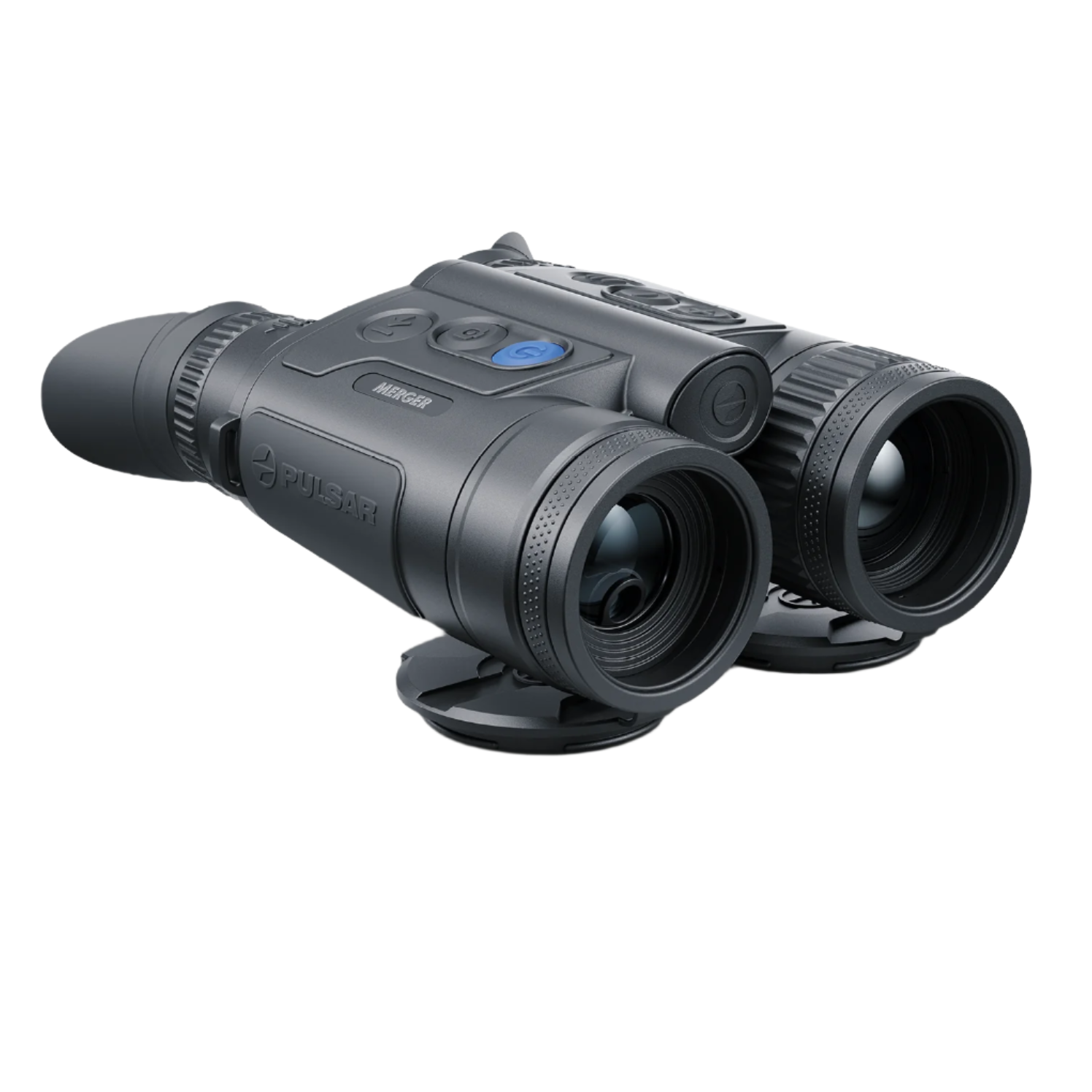

Merger LRF XQ35
| Sensor | 384 × 288 |
|---|---|
| Pixel Pitch | 17 µm |
| Lens | F35 / 1.0 |
| Magnification | 3 – 12× |
| Field of View (°) | 10.7 × 8 |
| Detection Range | 1350 m |
| Display | 1024 × 768 |
| Battery Life | 10 h |
| Memory | 16 GB |
| Weight | 0.83 kg |
| Dimensions (mm) | 181 × 133 × 68 |
| Key Features | Lightweight, ergonomic, high thermal performance |
Applications in Ecological Survey
- Detect nocturnal birds, such as owls and nightjars in complete darkness
- Identify active roosts and nests in vegetation or cliffs with minimal disturbance
- Spot camouflaged or cryptic animals that blend into natural habitats
- Pinpoint animals within large ecosystems such as estuaries, moorlands, and reedbeds
- Monitor species activity from afar with minimal field presence
- Maintain visibility in fog, rain, or snow where standard optics fail
Warranty Information
All Pulsar Merger LRF Thermal Binoculars come with a 3-year manufacturer warranty covering defects in materials and workmanship under normal conditions. For full terms, visit the Pulsar Warranty Policy at:
https://pulsarvision.com/warranty
